Universal Laser VLS2.30DT Laser System
Universal Laser VLS2.30DT Laser System

Product Development Inc Exclusive
ULS VLS2.30DT Laser System Complete Package
Lease for $240 Month - Apply Now

Special Sale Price Available
Includes FREE Accessories

Request Sale Price
The manufacturer requests that we do
not publish our lowest price on the internet.


Demo VLS2.30 & VLS3.50 Available Save $$$$$
See all demo equipment here


Universal Laser Systems Authorized Dealer
Serving Government, Business, Education, Individuals

Availability: Universal Laser VLS2.30DT Ships Freight
Request quote to receive shipping estimate


DESCRIPTION FEATURES TECHNICAL SPECS

Overview

Universal Laser VLS2.30DT Overview
The VLS2.30DT Desktop Laser is a compact and economical platform designed to be an entry level laser system for starting your laser material processing business. the VLS2.30DT is the easiest way to get started with laser technology. About the size of a printer, a VLS Desktop laser platform packs sophisticated laser processing capabilities into an attractive, durable package. Offering a material processing envelope of 16"x 12" x 4", (406 x 305 x 102mm,), the VLS2.30DT can be equipped with one of two ULS laser cartridges ranging in power from 10-30 watts.
Laser Interface+ software is the worlds Most Advanced, Powerful and Flexible Laser Print Driver for Material Processing systems! Giving you the choice of automatic or manual control over power, speed, pulses per inch and other system settings. Laser Interface+, combined with the Universal Control Panel (UCP), gives you complete control over your laser processing system.
Rapid Reconfiguration™ allows users to adapt their laser materials processing solution to match their ever-changing business needs – no tools or special training required. At its core, Rapid Reconfiguration allows users to very simply install and reinstall any ULS laser source onto any ULS laser system. On other laser systems, the task of changing laser sources can be complicated and dangerous and can cause several days of downtime.
1-Touch Laser Photo is an exclusive ULS software application that allows you to quickly and easily make almost any photograph laser engravable. It applies special filters to your image and adjusts the contrast and definition appropriately for the material being processed. Using the software is as simple as selecting your target material from a list and cropping, resizing, rotating or mirroring the image as needed.
High Power Density Focusing Optics HPDFO™uses a patented method to expand the laser beam within the focusing carriage. This expansion allows the beam to be focused into a much smaller focal spot, suitable for intricate, tight-tolerance engraving and for direct marking on some metals. In addition to sharper images and expanded material processing capability, systems using HPDFO benefit from lighter-weight delivery optics and an efficient motion system .
Configure and Price Lease Request A Sample Ask An Expert
Universal Laser Intro Video
Complete Packages
The Universal Laser VLS2.30DT Package includes everything you need to get started immediately.

  • Universal Laser VLS2.30DT Platform
  • Universal Laser Cartridge
  • Choice of 3 Colors
  • Universal Control Panel Software
  • Laser Interface+ Software
  • Laser Material Starter Kit
Universal Laser Systems VLS2.30DT Specs:
  • Work Area: 16" x 12" x 4"
  • Maximum Part Size: 18.75"W x 14.6"D x 4"H
  • Laser Options: 10-30 Watts

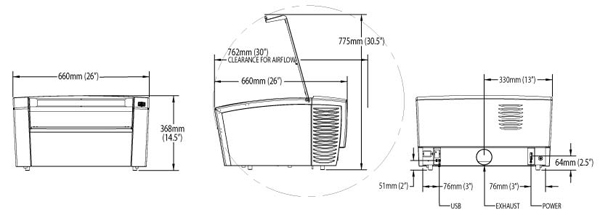

  • Overall Size: 26" Wide x 26" Deep x 14" Height
  • PC Connection: USB 2.0
  • Power: 110V / 10A
  • Weight: 70lbs
Compare other Universal Laser Systems Here

Message from Universal Laser Systems
All Universal Laser Systems are custom built to ensure the right system is configured to best fit your current and future needs. All accessories and lasers use interchangeable components, giving you the ability to tailor your custom built system for different applications.

Applications
Prototyping with Laser Systems
Prototyping with Universal Laser Systems

Make faster decisions and reduce proofing costs.
Packaging Developments & Prototyping
Packaging Development with Universal Laser Systems

Create new packaging without dies or tools.
Signage and Point-of-Purchase Displays
Making Signage with Universal Laser Systems

Produce high detail signage with a wide variety of materials
General Manufacturing with Laser Systems
General Manufacturing with Universal Laser Systems

Cost-effective non-contact prototyping and production, no tooling required."
Architectural 3D Modeling and Prototyping
Architectural Modeling: 3D and Rapid Prototyping with Universal Laser Systems

Quickly create intricate 3D models in a wide variety of real materials.
Woodworking Projects with Laser Systems
Woodworking with Universal Laser Systems

Cut, mark, image and engrave with the same machine.
Laser Material Processing Guide

Want to learn more about the VLS2.30DT and Digital Laser Material Processing?

Download our Free VLS2.30DT Digital Laser Material Processing Guide.

Inside you can learn about:
  • Universal VLS2.30DT Laser Cutting Materials...
  • Universal VLS2.30DT Laser Marking Materials...
  • Universal VLS2.30DT Laser Engraving Materials...
  • Universal VLS2.30DT Laser Photo Imaging....
  • And a whole lot more...
Vacuum Forming Guide
ULS Material Guide Cover
Laser Materials
Universal Laser Systems can process thousands of materials in ways traditional methods cannot.
Listed below are some of the materials you can successfully process with your Universal Laser System.
























VLS2.30DT Brochure
ULS VLS2.30DT Brochure

Want to learn more about the Universal Laser VLS2.30DT?

Download the Universal Laser VLS2.30DT Brochure.

Inside you can learn about:
  • Universal VLS2.30DT System Features...
  • Universal VLS2.30DT System Specifications...
  • Universal VLS2.30DT Power Requirements...
  • Universal VLS2.30DT Dimensions....
  • And a whole lot more...
ULS VLS2.30DT Brochure
