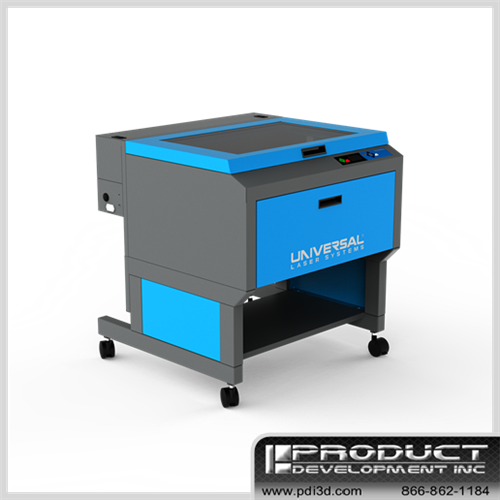

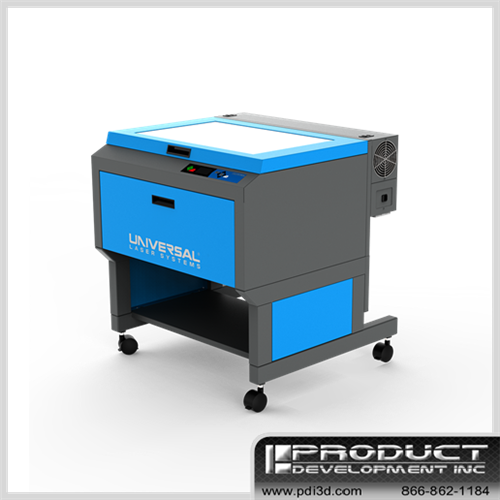

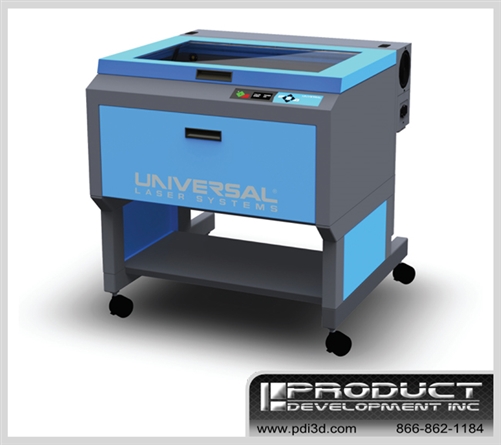

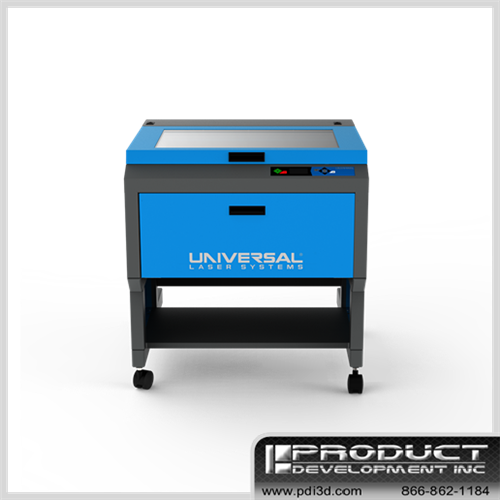

The PLS4.75 Laser System is a free standing laser platform designed for multiple material processing applications and small scale production. The PLS4.75 is ideal for processing a variety of materials in small production lot sizes. The PLS4.75 offers a material processing envelope of 24" x 18" x 9", (610 x 457 x 229mm), the PLS4.75 can be equipped with one of seven ULS laser cartridges ranging in power from 10-75 watts.
Laser Interface+ software is the worlds Most Advanced, Powerful and Flexible Laser Print Driver for Material Processing systems! Giving you the choice of automatic or manual control over power, speed, pulses per inch and other system settings. Laser Interface+, combined with the Universal Control Panel (UCP), gives you complete control over your laser processing system.
Rapid Reconfiguration™ allows users to adapt their laser materials processing solution to match their ever-changing business needs – no tools or special training required. At its core, Rapid Reconfiguration allows users to very simply install and reinstall any ULS laser source onto any ULS laser system. On other laser systems, the task of changing laser sources can be complicated and dangerous and can cause several days of downtime.
1-Touch Laser Photo is an exclusive ULS software application that allows you to quickly and easily make almost any photograph laser engravable. It applies special filters to your image and adjusts the contrast and definition appropriately for the material being processed. Using the software is as simple as selecting your target material from a list and cropping, resizing, rotating or mirroring the image as needed.
High Power Density Focusing Optics HPDFO™uses a patented method to expand the laser beam within the focusing carriage. This expansion allows the beam to be focused into a much smaller focal spot, suitable for intricate, tight-tolerance engraving and for direct marking on some metals. In addition to sharper images and expanded material processing capability, systems using HPDFO benefit from lighter-weight delivery optics and an efficient motion system .
|
|
The Universal Laser PLS4.75 Package includes everything you
need to get started immediately.
- Universal Laser PLS4.75 Platform
- Universal Laser Cartridge
- Universal Control Panel Software
- Laser Interface+ Software
- Laser Material Starter Kit
Universal Laser Systems PLS4.75 Specs:
- Work Area: 24" x 18" x 9"
- Maximum Part Size: 29"W x 23"D x 9"H
- Laser Options: 10,25,30,40,50,60,75 Watts
- Size: 36" Wide x 36" Deep x 39" Height
- PC Connection: USB 2.0
- Power: 110V / 10A
- Weight: 270lbs
Compare other Universal Laser Systems Here
|
|
Message from Universal Laser Systems
All Universal Laser Systems are custom built to ensure the right system is configured to best fit your current and future needs. All accessories and lasers use interchangeable components, giving you the ability to tailor your custom built system for different applications.
|
Want to learn more about the PLS4.75 and Digital Laser Material Processing?
Download our Free PLS4.75 Digital Laser Material Processing Guide.
Inside you can learn about:
- Universal PLS4.75 Laser Cutting Materials...
- Universal PLS4.75 Laser Marking Materials...
- Universal PLS4.75 Laser Engraving Materials...
- Universal PLS4.75 Laser Photo Imaging....
- And a whole lot more...
|
|
|
Universal Laser Systems can process thousands of materials in ways traditional methods cannot.
Listed below are some of the materials you can successfully process with your Universal Laser System.
|
|
|
|
|
|
|
|
|
|
|
Want to learn more about the Universal Laser PLS4.75?
Download the Universal Laser PLS4.75 Brochure.
Inside you can learn about:
- Universal PLS4.75 System Features...
- Universal PLS4.75 System Specifications...
- Universal PLS4.75 Power Requirements...
- Universal PLS4.75 Dimensions....
- And a whole lot more...
|
|
Product Development Inc has been selling and supporting CAD software and Rapid Prototyping equipment for over 12 years. We have won multiple awards for both sales and service. Our company started as a design firm/model shop using Solidworks and 3D Rapid Prototyping equipment to design and build products for our customers. We made a transition over 12 years ago to focus on selling 3D Rapid Prototyping Solutions. We sell Universal Laser System to all companies, individuals, schools and universities. We ask that you please consider us when making a purchasing decision, we have the knowledge and experience to make you successful.
See who trusted us to help them find a solution for their needs.
|
Universal Laser PLS4.75 Laser Features
Air-Cooled Laser Source
Because our laser sources are air-cooled, no complicated liquid cooling systems are required.
High Reliability, Excellent Power Stability
Our laser sources provide consistent power for predictably excellent processing results.
Laser Fan Control (to reduce noise)
Universal’s lasers are all air cooled by computer-controlled fans. Fan speed is reduced or increased as a function of laser temperature, reducing noise levels when the lasers are being used on lower power settings.
Laser Pointer
A red laser pointer is installed for easy material alignment.
Patented Cross-Platform Compatibility
Laser sources can be freely interchanged between laser platforms.
Patented Free-Space Gas Slab Laser Design
Our patented laser sources use free-space gas slab resonators to produce an excellent quality beam with even power distribution and good near and far field characteristics.
Patented Pre-Aligned Laser Sources
Laser sources are pre-aligned at the factory and do not need to be internally realigned.
Smart Laser Source Technology
Because we manufacture our own lasers, Universal’s lasers can communicate their model number to the laser system CPU, allowing the laser system to automatically choose the right settings for a particular material based on available laser power.
Warranty Available Up To 5 Years
Our standard warranty can be extended for up to half a decade of coverage.
Wide Selection of Power Levels
Lasers are available at power levels from 10 to 150 watts.
High Reliability Digital Motors
Universal’s laser systems use high quality digital motors which don’t require expensive and complicated optical encoders to function, increasing reliability.
Intelligent Laser Energy Management Engine
This feature maintains consistent energy density at any processing speed producing uniform marks and constant depth when cutting, marking and engraving.
Laminated Safety Glass
Glass viewing windows creating a safe enclosure for laser processing.
LCD Display
PLS/ILS laser systems come equipped with an onboard LCD display, allowing you to move the motion system and Z-axis manually during setup or to change job settings on the fly. This function is useful when determining optimal settings for new applications.
Multiple Automatic Focusing Methods
All Universal laser systems can be focused automatically based on material thickness or by using a convenient manual focusing tool. Some Universal laser systems can also be automatically focused using special sensors to detect the top surface of the material being laser processed.
Multiple Language Support
Supported languages include English, German, Japanese, Spanish, French, Italian, and more.
Over-Temp Alarm (for fire safety)
An over temperature alarm installed in every Universal laser system monitors the temperature of the work area. If an unusually high temperature is detected the system will turn off the laser and trigger an audible alarm.
Permanently Sealed Bearings
Our sealed, self-lubricating motion system bearings keep dust and debris out, resulting in a longer bearing life.
Stretch-Free Kevlar® Belts
Durable belts provide a long life of reliable processing.
Universal Laser PLS4.75 Laser Specifications
|
PLS4.75
|
|
Laser Processing Area (W x H)
|
24 x 18 in (610 x 457 mm)
|
|
Maximum Part Size (W x H x D)
|
29 x 23 x 9 in (737 x 584 x 229 mm)
|
|

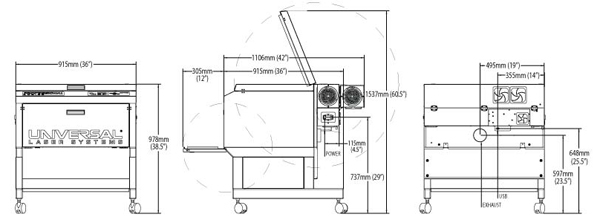

Overall Dimension (W x H x D)
|
36 x 39 x 36 in (914 x 991 x 914 mm)
|
|
Rotary Capacity
|
Max Diameter 8 in (203.2 mm)
|
|
Motorized Z Axis Lifting Capacity
|
40 lbs (18 kg)
|
|
Standard Focusing Lenses
|
2.0 in (51 mm)
HPDFO™ (High Power Density Focusing Optics)
|
|
Laser Platform Interface Panel
|
Keypad and LCD display show current file name, laser power,
engraving speed, PPI and run time.
|
|
Computer Requirements
|
Requires a dedicated PC to operate
Compatible with Microsoft® Windows® 7/8/10 - 32/64 bit
|
|
PC Connection
|
USB 2.0 or higher
|
|
Optics Protection
|
Available with Optional Air Assist
|
|
Cabinet Style
|
Free-Standing
|
|
Laser Options
|
10, 25, 30, 40, 50, 60 and 75 watts
|
|
Weight
|
270 lbs (122 kg)
|
|
Power Requirements
|
110V/10A
220V-240V/5A
|
|
Exhaust Requirements
|
One 4 in (102 mm) port
250 CFM @ 6 in static pressure (425 m3/hr at 1.5 kPa)
|
|
