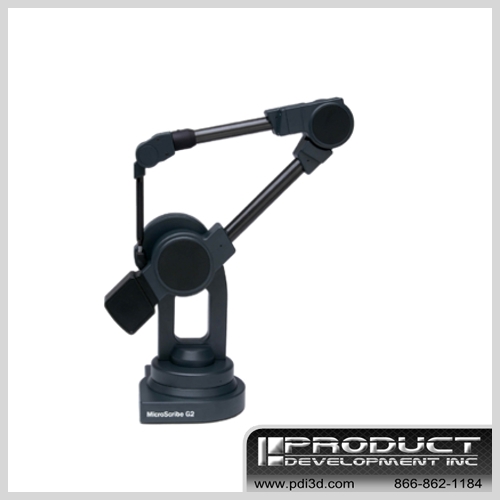

Revware MicroScribe G2X 3D Digitizer
Revware MicroScribe G2X 3D Digitizer

Product Development Inc Exclusive
Revware MicroScribe G2X Complete Package


Retail Price: $8,995.00
SPECIAL PRICING AVAILABLE
INCLUDES FREE ACCESSORIES

Request Sale Price
The manufacturer requests that we do
not publish our lowest price on the internet.


The Microscribe G2X has been discontinued
and replaced by the NEW Microscribe i

Demo Microscribe Available Save $$$$
See all demo equipment here


Revware MicroScribe Authorized Dealer for all 50 US States
Serving Government, Business, Education and Individuals

Availability: Usually Ships in 24 to 48 Hours

Description Technical Specs

Overview
Revware MicroScribe G2X 3D Digitizer Portable CMM
Accurate. Affordable. Portable. Each Revware MicroScribe G2X system provides a cost-effective alternative to traditional coordinate measurements machines, (CMMs) for industrial modeling, reverse engineering, spatial alignment, and position tracking. The Revware MicroScribe G2X supplies accuracy for a wide range of applications in an easy-to-use articulated arm and seamless integration with many popular metrology, reverse engineering, and 3D design software applications.
The Right Tool and Price
The Revware MicroScribe G2X Series portable measurement system supplies economical desktop CMM functionality. Showcasing several new enhancements, the Revware MicroScribe G2X series system provides accuracy appropriate for a wide range of modeling and data capture uses within design, industrial, medical, and reverse-engineering applications. Revware MicroScribe G2X Series system works with physical objects of any shape, size, and material. Trace over the contours of an object once or at intervals, and you can build complex 3D and 4D datasets. Now you can have the data collection efficiency of coordinate measurement systems at an affordable price.
Fast, Efficient, Solid
The Revware MicroScribe G2X Series digitizer is a precision-built aircraft aluminum and carbon fiber tool designed for quick, balanced movements. Smooth action and one-hand operation make it easy to complete measurement tasks quickly. The counter-balanced and intuitive articulation of the arm allows you to quickly position the stylus into even tight spaces. Infinite rotation in the wrist enhances maneuverability of the stylus. Optional M4-threaded probe tips further support fast and accurate measurement of many parts and materials.
Accurate and Easy to Use
Revware MicroScribe G2X Series system is calibrated according to Revwares Tri-Test Calibration method based on the American Society of Mechanical Engineers B89.4.22 specifications for the performance evaluation of articulated-arm CMMs. All systems ship with two M4 threaded, 3 mm ruby ball tips (one master and one working). Convenient probe calibration software and a precision calibration fixture are included, allowing the use of custom tips and rapid tip changing. Revware MicroScribe G2X system is CE and FCC certified, and come with a standard warranty. Setting up the Revware MicroScribe G2X system is simple, taking as little as five minutes. The USB port provides both high-speed data connection and power for the system, producing a highly portable digitizing solution when combined with a laptop or tablet. Mount the base to a work surface or set the clamp system wherever you need it.
Software Solutions
The Revware MicroScribe G2X Series system seamlessly integrates with many measurement and inspection software packages. Unlike other CMMs that limit third-party software integration, Revware MicroScribe technology frees you to choose the software thats right for your business. In addition, Revware MicroScribe Utility Software (MUS) allows data acquisition for some applications that do not provide native support. With the fast operation and ease of use provided by the Revware MicroScribe G2X series, you can do more projects in-house and avoid the increased cost and protracted turnaround associated with outsourcing.
Revware MicroScribe G2X Features:
  • Accurate
  • Affordable
  • Easy to Operate
  • Quiet Operation
  • Compact Size
  • Light Weight
  • Seamless Intergration
  • 5 Degrees of Freedom
  • Magnetic Base
  • Infinite Rotation
  • USB
Revware MicroScribe G2X Technical Specs:
  • Reach: 25" (.63m)
  • Work Sphere Diameter: 50" (1.27m)
  • Degrees of Freedom: 5 or 6
  • Accurate to: +/- 0.009 (.02286mm)
  • Operating Temp: 59 to 95F (15 to 35C)
  • Storage Temp:-4 to 158F (-20 to 70C)
  • Computer Interface: USB 1.1/RS-232C Serial up to 115kbps
  • Computer OS: Win 10, 8, 7,XP
  • Computer OS: 32 or 64 bit
  • Weight: 8.3lbs (3.8kg)
  • Power: 110V-240V
Revware MicroScribe G2X Applications:
  • Reverse Engineering
  • Part Inspection
  • Engineering
  • Construction
  • Architecture
  • Visual Effects
  • Tube Bending
  • CGI
  • Virtual Simulation
  • Electrical
  • Cataloging
  • Archaeology
  • Medical
  • Orthotics
  • Automotive
  • Online Retail
  • Product Design
  • Tool Building
  • Tool Setup
  • Jewelry Design
  • Game Assets
  • Aerosapce
  • Heritage
  • First Article Inspection
  • Photorealistic Modeling
  • Verification
  • Forensics
  • Comparative Analysis
Compare with other Microscribe 3D Digitizer Here
