***** NOW SHIPPING THE NEW INTAMSYS FUNMAT HT ENHANCED VERSION *****
RELEASED FEB 1 2019
NEW FEATURE! Automatic Leveling
Includes new nozzle for auto leveling and is more convenient for print preparation.
NEW FEATURE! Ceramic Glass Build Plate
Now with a new Build Plate design which allows for higher heating efficiency by using PI film and upgrading the build platform from Borosilicate Glass to Glass Ceramic for higher inflexibility and less thermal deformation.
NEW FEATURE! High Performance Independent Drivers
4 individual drivers for filament loading, the X-axis, the Y-axis, and the Z-axis. allowing for a significant improvement for print precision and speed, as well as the reliability of the equipment.

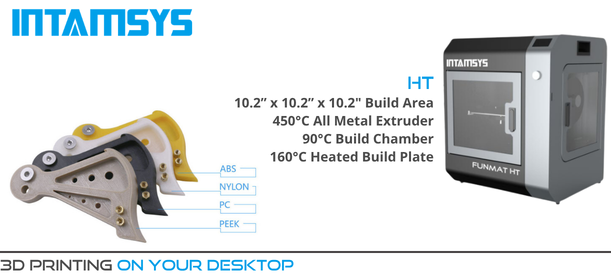

INTAMSYS FUNMAT ENHANCED HT Printer
Designed for professional and industrial users like you, the INTAMSYS FUNMAT HT 3D printer is positioned above common 'concept modeling' desktop 3D printers with the intention of allowing engineers and creators access to material types with properties that allow functionality and capability not available before. The INTAMSYS FUNMAT HT features a spacious build chamber and 10.2" X 10.2" X 10.2" (260 x 260 x 260 mm) build volume. The advanced thermal system comprises a 194°F (90°C) constant temperature chamber, 320°F (160°C) heated build plate and 842°F (450°C) high-temperature extruder with all-metal hot-end. The FUNMAT HT is capable of printing over 14 types of high-performance and engineering-grade thermoplastics at larger dimensions. Start building large-size and robust production parts in PEEK, ULTEM and, PPSU today on the FUNMAT HT.
Uncompromising Level of Detail
Regarding the X and Y axis, the movement is directly entrusted to the full metal chassis which provides a solid rigid enclosure for the core internal mechanics. A metal casing with glass windows and a fully insulated chamber help to maintain a consistent printing environment. For improved printing performance, the FUNMAT HT has a controlled actively heated chamber (194°F/90°C) and a heated aluminum plate bed (320°F/160°C). This allows for rapid and extremely accurate positioning with noticeable results in terms of resolution and speed of production of materials previously unavailable to the 3D printing community.
New All Metal Hot End
It represents the heart of the filament deposition technology. INTAMSYS has completely redesigned the extruder, to conduct the heat in the exact spot where the material softens, enabling its dissipation throughout the rest of the surface. Innovative design ensures that the filament is channeled directly through the hot-end helping to prevent breakage, seepage, and inaccuracy.
Wide Selection of Industry Defined Materials
INTAMSYS FUNMAT HT is designed to allow the use of the latest in material technology. With our eight-step quality control process and rigorous in-house testing, you can rest assured that your part will work every time. With options, such as PEEK, the industry standard for metal replacement, with it's high tensile strength and resistance to chemical corrosion, as well as the capability to print in many other high-performance materials. INTAMSYS' ongoing research and development partnership program, focusing on everything from strategic support and advanced materials research to complex parts design and production, is a partnership program that complements our partners’ in-house capabilities with INTAMSYS’ state-of-the-art research facilities, technologies, and expertise in high-performance functional materials 3D printing.
A Better Eye on Production
The integrated non-conductive touchscreen allows for you to control the print even while wearing the hot glove. With the Filament breakage alert, which monitors the filament as it is fed through the hot-end and immediately pauses the print if an error occurs, and built-in camera, that allows remote monitoring via an App on your smartphone, you can control all aspects of your model and ensure its efficient production.
Powerful and easy to use software
The Intamsuite software contains everything
you need to begin making parts on your
new 3D printer. Import and manipulate
geometry, repair models, generate G-code
instructions, verify tool paths, manually
control your machine, and print parts all
from the same program. It provides detailed print preview capabilities allowing for a thorough analysis of a model prior to 3D printing.
INTAMSYS FUNMAT HT Features:
- All Metal Hotend up to 450°C
- 50 Micron Resolution X-Y
- Z 50 Micron Accuracy
- 14 Engineering Grade Materials
- Integrated Non-Conductive 3.5" Touchscreen
- Empowered Electronics
- Emergency Block System
- SD card Included
- Software Included
- Built-In Camera
INTAMSYS FUNMAT HT Technical Specs:
- Build Area: 10.2" X 10.2" X 10.2"
- Resolution: 50-200 microns
- Material Dia: 1.75mm
- Nozzle Dia: 0.4mm (Swappable)
- Print Velocity: 30-300mm/s
- Weight: 117lbs
- Power: 110V/1200W
- Positional Accuracy: X/Y:12.5μm Z:1.25μm
- Max Extruder Temp: 842°F
- Max Platform Temp: 320°F
- Max Chamber Temp: 194°F
FUNMAT HT Materials:
- Carbon Fiber Filled

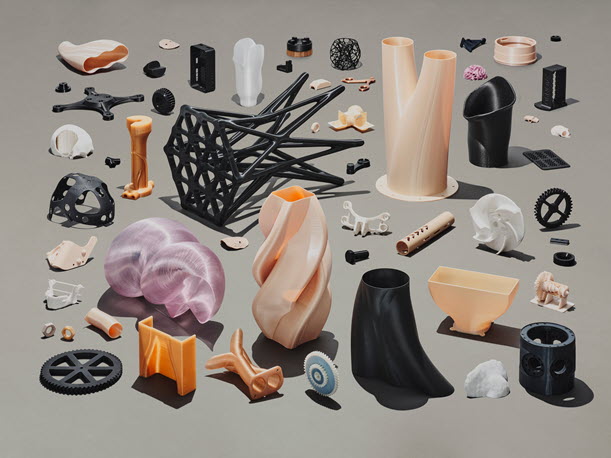

INTAMSYS FUNMAT HT Applications:
- Surgical Guides
- Surgical Tools
- After Market
- Cooling channels
- Sectioned Parts
- Combined Parts
Compare with other INTAMSYS 3D Printers Here
