Formech 2440 Vacuum Former Features

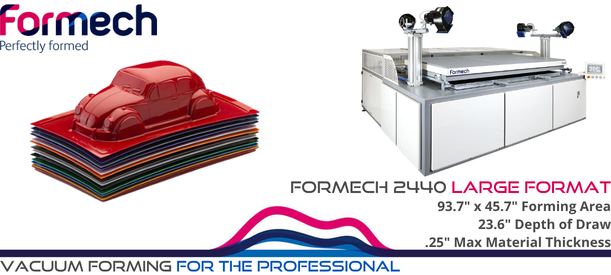

Introducing Formech 2440 Vacuum Former

The Formech 2440 sets a new standard in easy-to-use, large-format vacuum forming. Engineered for demanding industrial applications, it accommodates sheet sizes up to 2440 x 1220mm while maximizing efficiency and output. Featuring energy-efficient quartz heaters with 48 control zones and four high-output cooling fans, the 2440 delivers precise heat distribution and rapid cycle times for maximum hands-on productivity.

Formech Cycle View (FCV) with Multi-Programme Memory and 10” Touchscreen

This intuitive user interface makes the 2440 highly approachable for operators of all skill levels. Machine cycle status is clearly visible at a glance and all parameters can be adjusted in real time without interrupting the current cycle. Nameable memory pre-sets enable convenient recall of settings for each application.

Vacuum Receiver Tanks

Two 200 litre vacuum tanks enable instantaneous vacuum with excellent definition for the most demanding applications.

Process Automation

Electric heater drive, with pneumatic table and pneumatically-assisted clamping, make light work of large applications and greatly assist the operator.

What's included?

• A table mesh
• 1 1/4" BSP Regulator for air connection
• 12 months warranty

Formech 2440 Features

• Quartz Heaters with Variable Standby
  Quartz heaters have the benefit of a rapid response and high efficiency resulting in time and energy savings.
• Vacuum & Release
  After the formed part has cooled, air is forced between the mould and the sheet to help it release.
• FCV (Formech Cycle View) with 40 Programme Memory
  Machine cycle status is clearly visible at a glance and all parameters can be adjusted in real time without interrupting the current cycle.
• Pre-Stretch
  Pre-stretch enables the user to pump air into the heated sheet, creating a bubble to avoid thinning of material with deeper tools.
• Four Cooling Fans
  To cool formed material and shorten cycles times.
• Vacuum Flow Regulator
  Precisely regulates vacuum flow rate when a greater level of control is required with demanding applications.
• Electric Heater Drive
• Multi User Pin Access Control
  The supervisor of the machine can choose and determine a level of access for the different operators.
• Oil Filled Rotary Vane Pump 70m3/h
• Vacuum & Pressure Gauges
  A visual indication of consistent vacuum and pressure being applied (pressure in Hg / bar).
• PLC Control with 10" Hi-Res Touch Screen
• 48 Independently Controllable Heating Zones
  Provide rapid heat response with a greater range of control to form challenging shapes and materials.
• Auto-Level
  Avoids material sag during the heating cycle and maintains an even distance between heater and sheet whilst providing the user with an audible indication the material is ready to form.
• Vacuum receiver tanks (2x200l)
• Pneumatic Table
  Lifts tool table quickly and precisely making effortless operation, even with heavy tools. Twin controls avoid accidental activation.
• Table Height Adjust
  Table height adjust shortens the tool table travel when using shallow tools and reduces cycle time.
• Pneumatic Trigger Clamps
  Pneumatically powered clamping system that provides powerful and effortless control.
• 12 Months Warranty
  12 months warranty is included, as standard, with all Formech machines.

Formech 2440 Vacuum Former Specifications

(1)Height does include cooling fan assembly
