Roland MPX-95 Photo Impact Printer Engraving Machine
Roland MPX-95 Photo Impact Printer Engraving Machine




Product Development Inc Exclusive
Roland MPX-95 Complete Package
Lease for $105 Month - Apply Now

Retail Price: $4,995.00

Open Box Unit - 1 Year Factory Warranty
1 Available Ready To Ship SAVE $$
Contact Us

The Roland MPX-95 has multiple configurations.

Configure
Easy to use online form to choose your
options and get sale price.


Open box unit was used at a tradeshow and has less then 1 hour of use, will ship in original factory box.

Includes - 1 Year Factory Warranty, Starter Material, Online Training, and Gold Level Tech Support.

Roland Authorized Dealer for all 50 US States
Serving Government, Business, Education, Individuals


Availability: Usually Ships in 24 to 48 Hours
Product Code: ROLAND-MPX-95

Description Features Technical Specs

Overview
Roland MPX-95 Photo Impact Printer and Engraving Machine
Perfect for kiosk, jewelry stores, and gift shop applications, the new METAZA MPX-95 photo impact printer is a low-cost, easy-to-operate solution for personalizing high-value metal items and making them even more unique and profitable. With a host of options, the Roland METAZA MPX-95 can be customized to meet the demands of a wide array of impact printing applications on materials like gold, silver, platinum, stainless steel, titanium, and acrylic. Everything from gift and jewelry personalization, award customization to commercial Direct Parts Making (DPM) and advanced medical Unique Device Identification (UDI) marking can all be achieved with this single platform.
Personalize and Mark Hundreds of Metal Items
A Diamond-tipped stylus strikes material with high-speed precision, adding fine text and complex data patterns and producing detailed graphics and text on smart devices, jewelry, sunglasses, urns, golf clubs, tools, industrial equipment and more.
Compact, Quiet and Portable
The Roland METAZA MPX-95 photo impact printer runs without debris, noise or odor. The Roland METAZA MPX-95 is safe in any gift shop, retail store, kiosk or manufacturing environment. This compact, portable device can be taken virtually anywhere for the on-site production of personalized giftware, making it ideal for craft fairs, pet shows, weddings and other special events. No daily maintenance, special power or ventilation is required.
NEW Laser Pointer Alignment
The Roland MPX-95 comes standard with a built-in laser pointer to take the guesswork out of positioning your work piece. With a touch of a button, users can easily identify where the center of their image will be printed on almost any material, ensuring optimum precision and alignment.
NEW Versatile Removable Table and Base Plate
Users can expand the Roland MPX-95's profit-making potential in seconds. The base of the device can be removed easily, enabling the Roland MMPX-95 to imprint onto large items such as golf clubs, metal vases, medical tools, devices and industrial equipment.

Maximum Material or Item Size and Print Area
With Base Plate, Cover Closed: 3.9" (W) x 7.9" (L) x 2.8" (H)
Base Plate Removed, Cover Open: No Limit to the size of object that can be marked or engraved.
Max Imprintable Area: 3.2" (W) x 3.2" (L) x 2.8" (H)
METAZA Studio and Dr. Engrave Software Included
The Roland METAZA MPX-95 comes with powerful, user-friendly METAZA Studio, design software, making it simple to achieve great results. METAZA studio accepts artwork, designs and photos from a wide variety of sources, including digital cameras, mobile phones, and bmp, jpeg or Adobe Illustrator files. With the Roland METAZA MPX-95 Dr. Engrave software, you can choose from a selection of TrueType fonts, or create your own single-stroke or fill fonts. Dr. Engrave supports production of variable data projects.
Roland MPX-95 Features:
  • Affordable
  • Easy to Operate
  • Quiet Operation
  • Compact Size
  • Fully Enclosed
  • Built-in Laser Pointer Set-Up
  • Diamond-Tipped Stylus for Metals
  • METAZA Studio Software Included
  • Dr. Engrave Software Included
  • Uses all Windows Fonts
  • No Fonts to Purchase
  • Variable Data Printing Capabilities
  • DPM Version with 2D Symbol Code Creator
  • 1 Year Trouble-Free Warranty
Roland MPX-95 Technical Specs:
  • Engraving Type: Raster and Vector
  • Surface Geometry: Flat, 2D, Curved, 3D
  • Unidirectional or Bidirectional Imprinting
  • High Resolution: 529 dpi
  • Photo Resolution: 353 dpi
  • Text Resolution: 265 dpi
  • Vector Resolution: 1058 dpi
  • High Resolution Imprint Speed: 33 mm/sec
  • Photo Imprint speed: 50 mm/sec
  • Text Imprint Speed: 33 mm/sec
  • Vector Imprint Speed: 24 mm/sec
  • Computer Interface: USB
  • Computer OS: Win 10, 8, 7
  • Computer OS: 32 or 64 bit
  • Size: 11.3" Wide x 15.1" Deep x 12.2" Height
  • Weight: 27 lbs
  • Power: 110V / 1.2A
Roland MPX-95 Materials:
The Roland MPX-95 makes it fast and easy to engrave on a wide range of hard materials and materials with a Vickers hardness [HV] of 200 or less.
  • Stainless Steel
  • Platinum
  • Silver
  • Iron
  • Nickel
  • Gold
  • Copper
  • Brass
  • Titanium
  • Aluminum
  • Acrylic
  • Plastic
*All materials with a Vickers hardness [HV] of 200 or less

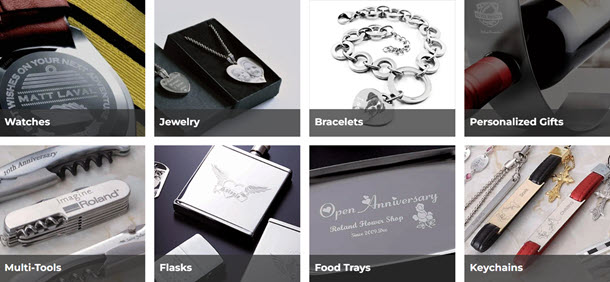

Roland MPX-95 Applications:
  • Pens
  • Business Card Holders
  • Smart devices
  • Golf Clubs
  • Zippo Lighters
  • Key chains
  • Asset Tags
  • Flasks
  • Vases
  • Funeral Plates
  • Trophy Plates
  • Dog Tags
  • Flatware
  • Tools
  • Name Plates
  • Sunglasses
  • Watches
  • Medical Tools
  • Equipment
  • Coasters
  • Cuff links
  • ID Plates
  • Badges
  • Jewelry
  • ID Bracelets
  • Tumblers
  • Personalization
  • Picture Frames
  • Utility Knives
  • Serial Plates
  • Electrical Tags
Compare with other Roland Engravers Here
Award Winning Dealer

Product Development Inc has been selling and supporting Roland equipment for over 15 years. We have won multiple awards for both sales and service. Our company started as a design firm/model shop using CAD and 3D prototyping equipment like 3d printers and cnc machines to design and build products for our customers. We made a transition over 12 years ago to focus on selling equipment to engineers and others who create. We sell Roland equipment to all companies, individuals, schools and universities. We ask that you please consider us when making a purchasing decision, we have the knowledge and experience to make you successful. See who trusted us to help them find a solution for their needs.

Introduction Video
We have additional Introduction and Training Videos for the Roland MPX-95.
Select the Playlist in the upper left corner to choose the other videos.
Applications
Roland MPX-95 Applications:
  • Pens
  • Business Card Holders
  • Smart devices
  • Golf Clubs
  • Zippo Lighters
  • Key chains
  • Asset Tags
  • Flasks
  • Vases
  • Funeral Plates
  • Trophy Plates
  • Dog Tags
  • Flatware
  • Tools
  • Name Plates
  • Sunglasses
  • Watches
  • Medical Tools
  • Equipment
  • Coasters
  • Cuff links
  • ID Plates
  • Badges
  • Jewelry
  • ID Bracelets
  • Tumblers
  • Personalization
  • Picture Frames
  • Utility Knives
  • Serial Plates
  • Electrical Tags
Brochure
Roland MPX-95 Brochure

Want to learn more about the Roland MPX-95?

Download the Roland MPX-95 Brochure.

Inside you can learn about:
  • Roland MPX-95 Features...
  • Roland MPX-95 Specifications...
  • Roland MPX-95 Options...
  • Roland MPX-95 Capabalities....
  • And a whole lot more...
Roland MPX-95 Brochure
