Formech 300DT Vacuum Forming Machine
Formech 300DT Vacuum Forming Machine




Product Development Inc Exclusive
Formech 300DT Complete Package
Lease for $80 Month - Apply Now

Retail Price: $3,310.00
Special Package Price Available

Configure and Price
Build your custom package and get the price

Have questions? ASK AN EXPERT

Formech Authorized Dealer
Serving Government, Business, Education, Individuals


Availability: Usually Ships in 24 to 48 Hours

DESCRIPTION FEATURES TECHNICAL SPECS

Formech 300DT Overview Section

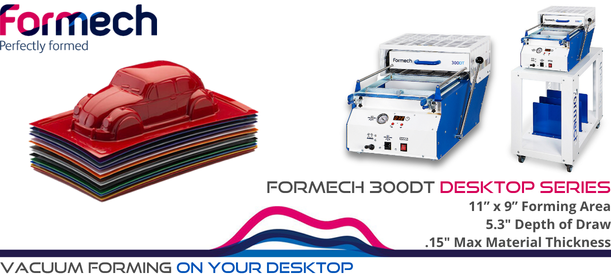

Formech 300DT Overview Picture

Formech 300DT Vacuum Forming Machine

Formech is proud to announce that we will be launching a new model to take up Mini’s torch and continue its legacy for years to come. The brand new 300DT is set to become Formech’s smallest desktop machine to date. Keeping the functionality and capabilities of its predecessor, the 300DT is smaller in volume and lighter, making it even easier to transport. Compared with other desktop machines on the market, the 300DT comes with a quiet built-in vacuum pump and moulding release.


Formech 300DT Vacuum Forming Machine Formech 300DT Vacuum Forming Machine
The Formech 300DT vacuum former is low cost and easy to use vacuum forming machine capable of producing high-definition moldings in materials up to 0.2" (4mm) thickness. With a generous forming area of 11" x 9" and a maximum depth of draw of 5.4", it provides ample space for various molding projects. The machine easily accommodates sheet sizes up to 12" x 10", allowing for flexibility in material selection and project size.

Formech 300DT Rolling Cart Formech 300DT Rolling Cart
The Formech 300DT Rolling Cart was specifically designed for the Formech 300DT vacuum former and features castors with locking wheels. Underneath there is space to store plastic material and molds.

Formech 300DT Reducing Window Formech 300DT Reducing Window
The Formech 300DT 11"x11" and 5"x5" reducing windows reduce the forming area in order to use smaller sheets of plastic when forming a mold or using a tool that is smaller than the forming area of the machine. Formech can also produce a custom size for your specific application.

Formech 300DT Spare Parts Kit Formech 300DT Spare Parts Kit
The Formech 300DT spare parts kit will allow you to operate your vacuum former for years without the need for any additional items except consumables. Includes - Quartz elements, clamps, terminal blocks, seals, filter, fuses, etc.

Formech 300DT Starter Material Kit Formech 300DT Starter Material Kit
The Formech 300DT starter material kit has an assortment of materials cut to size to fit your Formech vacuum forming machine.

Formech 300DT Configure and Price Formech 300DT Lease Financing Formech 300DT Request A Sample Formech 300DT Ask An Expert
Formech 300DT Introduction Video Section
Formech 300DT Details Section
Formech 300DT Features:
  • Interlock
  • Digital Timer
  • Vacuum Gauge
  • Pressure Outlet
  • Vacuum and Release
  • Linear Heater Guides
  • Diaphragm Vacuum Pump
Formech 300DT Technical Specs:
  • Material Size: 12" x 10
  • Forming Area: 11" x 9"
  • Max Depth of Draw: 5.3"
  • Max Material Thickness: 0.15"
  • Heating Element: Quartz
  • Dimensions: 18" x 29.4" x 14"
  • Weight: 64lbs (29kg)
Formech 300DT Materials:
  • ABS
  • Acrylic
  • Bextrene
  • CAB
  • Duraplex
  • HDPE
  • HIPS
  • HMWPE
  • Kydex
  • Lexan
  • LDPE
  • Makrolon
  • Mylar
  • Noryl
  • Optix
  • Oroglas
  • Perspex
  • Polyethylene
  • PE
  • PE Foam
  • PET
  • PETG
  • Plexiglas
  • PMMA
  • Polycarbonate
  • Polystyrene
  • Polypropylene
  • PPS
  • PSU
  • PTFE
  • PVC
  • TPE
Compare with other Formech Vacuum Formers Here

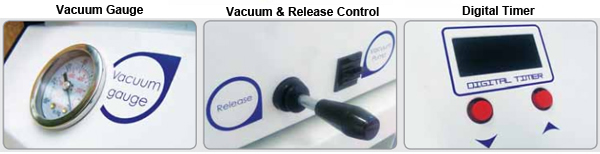

Formech 300DT Features
Formech 300DT Buyers Guide Section

Want to learn more about Vacuum Forming?

Download our Free Vacuum Forming Guide

Inside you can learn about:
  • 300DT Vacuum Forming Applications...
  • 300DT Vacuum Forming Process...
  • 300DT Vacuum Forming Mold Design...
  • 300DT Vacuum Forming Materials and Characteristics...
  • And a whole lot more...
Formech 300DT Download Buyers Guide
Formech 300DT Buyers Guide
Formech 300DT Applications Section

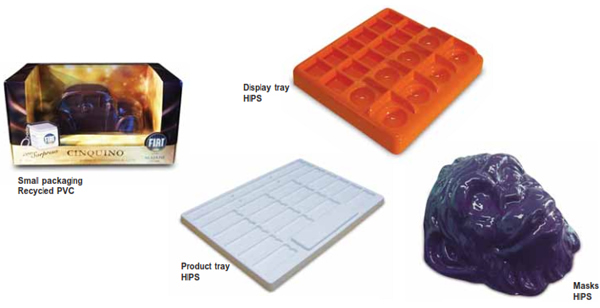

Formech 300DT Application Pictures

Formech 300DT Applications:
  • Agriculture Trays
  • Aerospace
  • Architectural
  • Arts & Crafts
  • Automotive Design
  • Manufacturing
  • Nautical
  • Prototyping
  • Chocolate Molds
  • Candy Molds
  • Dental Labs
  • Home Goods
  • Sign Making
  • Educational
  • Special FX Props
  • Furniture
  • Packaging
  • In Mold Decoration
  • Medical Devices
  • Model Cars
  • Model Aircraft
  • R/C Car Bodies
  • Museum Models
  • LED Lighting
  • Product Design
  • Soap Molds
  • Shoe Design
  • Toymakers
  • Point of Sale
  • Aviation Tool Trays
  • Masks
  • Storage Cases
Formech 300DT Brochure Section


Formech 300DT Brochure

Want to learn more about the Formech 300DT?

Download the Formech 300DT Brochure

Inside you can learn about:
  • Formech 300DT Features...
  • Formech 300DT Specifications...
  • Formech 300DT Options...
  • Formech 300DT Dimensions....
  • And a whole lot more...
Formech 300DT Download Brochure
Formech 300DT and PDI3D About Us Section PDI3D Award Winning Dealer

Have questions about the Formech 300DT Vacuum Former?

We are more than a website. We are real people who have been using Formech vacuum formers for over 25 years.

Here are some things we can help you with... Formech 300DT Ask an Expert Details
  • Discuss your application to make sure it's a good fit.
  • Discuss materials, part sizes, and forming area.
  • Create samples of the items you want to vacuum form.
  • Test your materials or go over your mold requirements.
  • Help you choose the accessories that you need.
  • Put together a special package price for your specific application.
